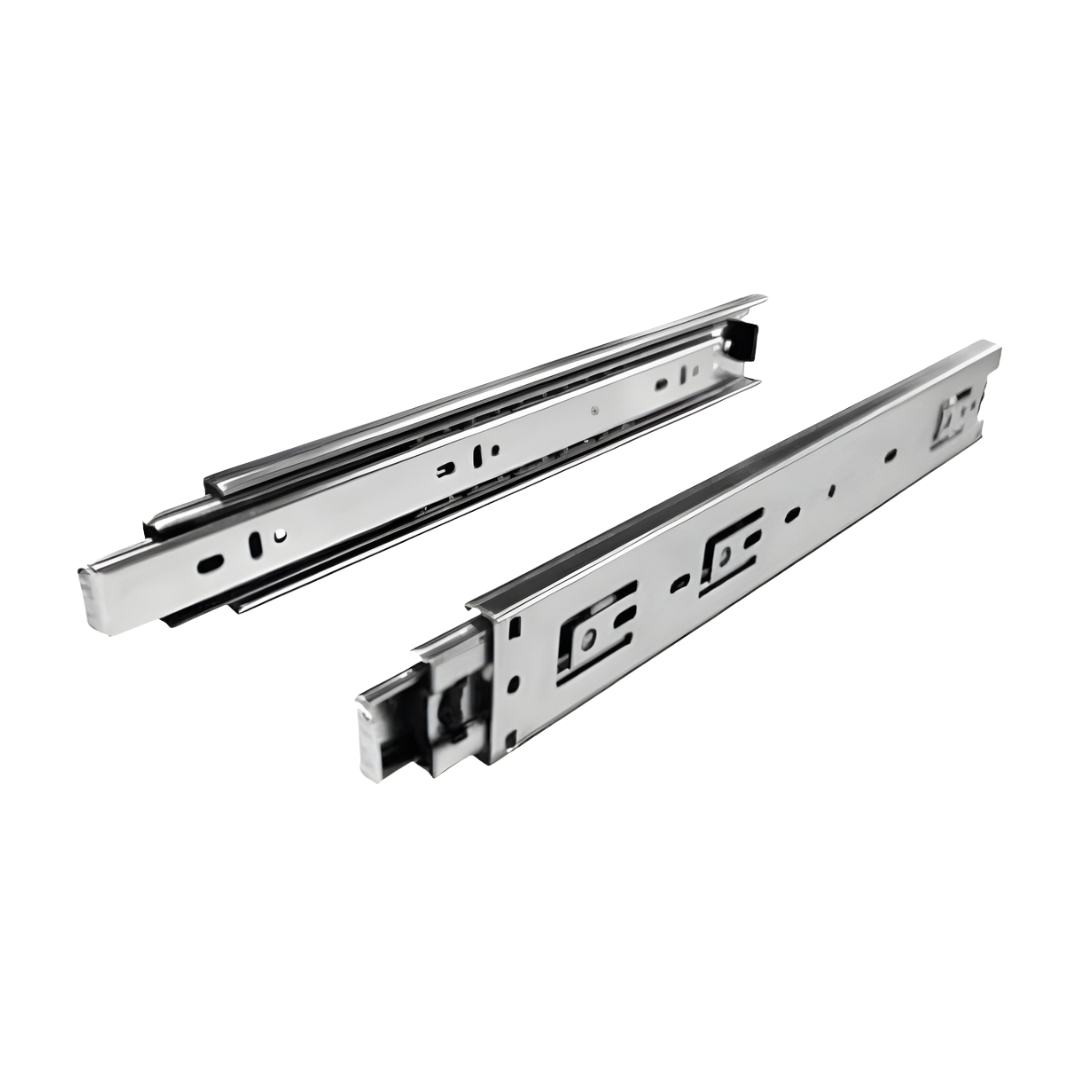

Series 46 Ball Bearing Drawer Runner 45kg – 45 x 600mm

SKU: DS56001

Specifications

• Finish: Bright Zinc Plated
• Extension: 3 Part Slide (100%)
• Installation: Side Mounted (Product NOT to be Base Mounted)
• Closed length: 600mm
• Open length: 1200mm
• Profile Height: 46mm
• Profile Width: 12.7mm (Based on 450mm)
• Drawer Width: (Internatil Cabinet Width) 26mm
• Load Rating: 45kg (Based on 450mm)
• Quick Release: Yes
• Range Sizes: 250 – 750mm
• Fixing Method: Screw or Rivet
